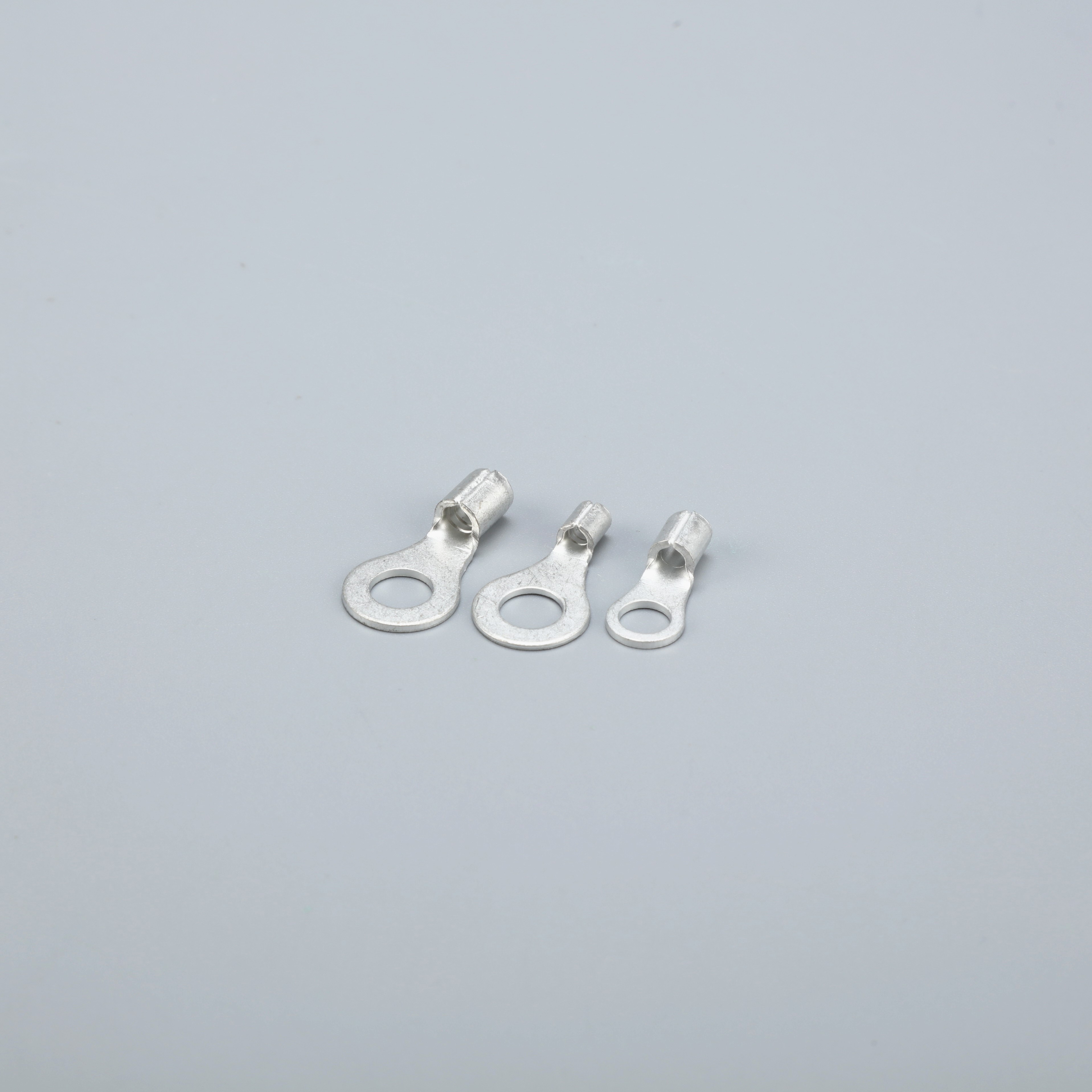

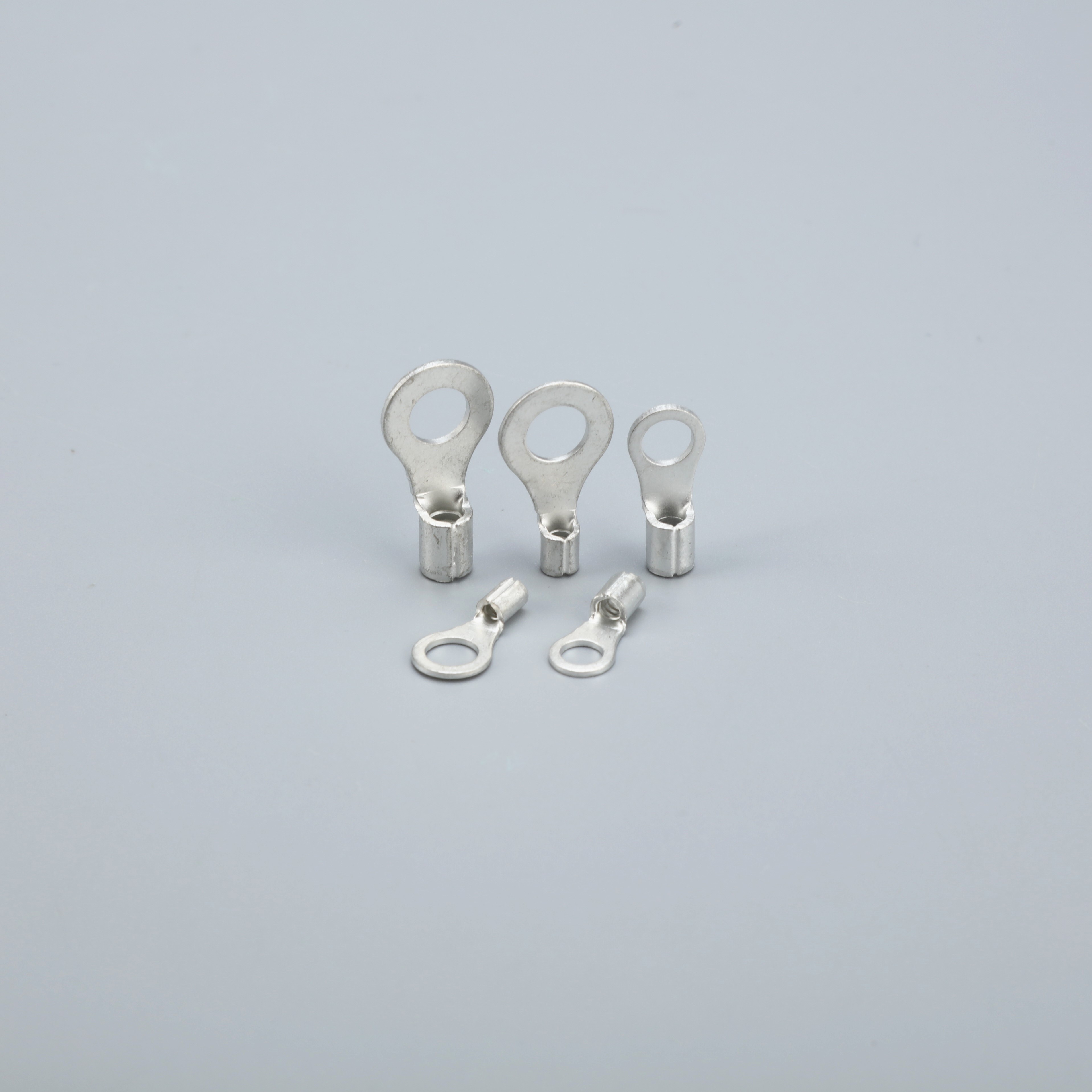

Non Insulated Ring Terminal
RNB1.25-3.5L
FOB
2000 packs
1000,000packs / Day
Yueqing,China
10 daysDay
Material: Electrolytic Copper Tube with tin plated
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: RNB1.25-3, RNB1.25-3.5S, RNB1.25-3.5M, RNB1.25-3.5L, RNB1.25-4S, RNB1.25-4L, RNB1.25-5, RNB1.25-6, RNB1.25-8, RNB1.25-10, RNB2-3, RNB2-3.5S, RNB2-3.5M, RNB2-33.5L, RNB2-4S, RNB2-4L, RNB2-5S, RNB2-5L, RNB2-6, RNB2-8,RNB2-10, RNB3.5-4,RNB3.5-5S, RNB3.5-5L, RNB3.5-6, RNB5.5-3.5, RNB5.5-4S, RNB5.5-4L, RNB5.5-5, RNB5.5-6, RNB5.5-8, RNB5.5-10, RNB5.5-12,RNB8-4, RNB8-5S, RNB8-5M, RNB8-5L, RNB8-6S, RNB8-6L, RNB8-8,RNB8-10, RNB8-12, RNB14-4, RNB14-5,RNB14-6S, RNB14-6L, RNB14-8, RNB14-10, RNB14-12, RNB22-5S, RNB22-5, RNB22-6S, RNB22-6L, RNB22-8,RNB22-10, RNB22-11, RNB22-12, RNB38-5, RNB38-6, RNB38-8S, RNB38-8L, RNB38-10S, RNB38-10L, RNB38-11, RNB38-12, RNB60-6, RNB60-8, RNB60-10, RNB60-11, RNB60-12, RNB60-14, RNB60-16, RNB60-18, RNB60-20, RNB60-22, RNB70-6, RNB70-8, RNB70-10, RNB70-11, RNB70-12, RNB70-14, RNB70-16, RNB70-18, RNB70-20, RNB70-22
Package: 1000 Pcs /bag
Brand: WAHSURE
ITEM: RNB1.25-3, RNB1.25-3.5S, RNB1.25-3.5M, RNB1.25-3.5L, RNB1.25-4S, RNB1.25-4L, RNB1.25-5, RNB1.25-6, RNB1.25-8, RNB1.25-10, RNB2-3, RNB2-3.5S, RNB2-3.5M, RNB2-33.5L, RNB2-4S, RNB2-4L, RNB2-5S, RNB2-5L, RNB2-6, RNB2-8,RNB2-10, RNB3.5-4,RNB3.5-5S, RNB3.5-5L, RNB3.5-6, RNB5.5-3.5, RNB5.5-4S, RNB5.5-4L, RNB5.5-5, RNB5.5-6, RNB5.5-8, RNB5.5-10, RNB5.5-12,RNB8-4, RNB8-5S, RNB8-5M, RNB8-5L, RNB8-6S, RNB8-6L, RNB8-8,RNB8-10, RNB8-12, RNB14-4, RNB14-5,RNB14-6S, RNB14-6L, RNB14-8, RNB14-10, RNB14-12, RNB22-5S, RNB22-5, RNB22-6S, RNB22-6L, RNB22-8,RNB22-10, RNB22-11, RNB22-12, RNB38-5, RNB38-6, RNB38-8S, RNB38-8L, RNB38-10S, RNB38-10L, RNB38-11, RNB38-12, RNB60-6, RNB60-8, RNB60-10, RNB60-11, RNB60-12, RNB60-14, RNB60-16, RNB60-18, RNB60-20, RNB60-22, RNB70-6, RNB70-8, RNB70-10, RNB70-11, RNB70-12, RNB70-14, RNB70-16, RNB70-18, RNB70-20, RNB70-22
Quantity
Material: Electrolytic Copper Tube with tin plated
Package: 1000 Pcs /bag
Brand: WAHSURE
Type:??Non Insulated Ring Terminal, Electrical Connectors, Wire Terminals, Crimp Terminals,Crimping Terminals Copper Tinned- Ring,Non Insulated Ring Terminal, Electrical Connectors, Wire Terminals, Crimp Terminals,Crimping Terminals Copper Tinned- Ring
Features:
*?Ring tongue design assures a secure connection in high vibration applications.
*?Brazed seam protects terminal barrel from splitting during the crimping process.
*?The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel.
ITEM NO. : RNB1.25-3.5L
Other size
?
?
Package: 1000 Pcs /bag
Brand: WAHSURE
Type:??Non Insulated Ring Terminal, Electrical Connectors, Wire Terminals, Crimp Terminals,Crimping Terminals Copper Tinned- Ring,Non Insulated Ring Terminal, Electrical Connectors, Wire Terminals, Crimp Terminals,Crimping Terminals Copper Tinned- Ring
Features:
*?Ring tongue design assures a secure connection in high vibration applications.
*?Brazed seam protects terminal barrel from splitting during the crimping process.
*?The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel.
ITEM NO. : RNB1.25-3.5L
| Dwire Range | AWG/MCM | 22-16 |
| mm2 | 0.5-1.5 | |
| φD | 3.4 | |
| φd1 | 1.7 | |
| E | 4.8 | |
| F | 7 | |
| φd2 | 8 | |
| L | 3.7 | |
| B | 15.8 | |
| A | 19 | |
Other size
| ITEM NO | Dwire Range | φD | φd1 | E | F | φd2 | L | Color | A | |
| AWG/MCM | mm2 | |||||||||
| RNB1.25-3 | 22-16 | 0.5-1.5 | 3.4 | 1.7 | 4.8 | 4.95 | 5.7 | 17.8 | 12.6 | 19 |
| RNB1.25-3.5S | 4.95 | 5.7 | 17.8 | 12.6 | ||||||
| RNB1.25-3.5M | 6.3 | 6.6 | 20.1 | 14.4 | ||||||
| RNB1.25-3.5L | 7 | 8 | 21.5 | 15.8 | ||||||
| RNB1.25-4S | 6.3 | 6.6 | 20.1 | 14.4 | ||||||
| RNB1.25-4L | 7 | 8 | 21.5 | 15.8 | ||||||
| RNB1.25-5 | 7 | 8 | 21.5 | 15.8 | ||||||
| RNB1.25-6 | 11.1 | 11.6 | 27.5 | 21.8 | ||||||
| RNB1.25-8 | 11.1 | 11.6 | 27.5 | 21.8 | ||||||
| RNB1.25-10 | 13.9 | 13.6 | 31.6 | 25.5 | ||||||
| RNB2-3 | 16-14 | 1.5-2.5 | 4.1 | 2.3 | 4.8 | 4.3 | 6.6 | 3.2 | 12.3 | 27 |
| RNB2-3.5S | 4.3 | 6.6 | 3.7 | 12.3 | ||||||
| RNB2-3.5M | 7 | 6.6 | 3.7 | 16 | ||||||
| RNB2-33.5L | 7.75 | 8.5 | 3.7 | 16.8 | ||||||
| RNB2-4S | 7 | 6.6 | 4.3 | 16 | ||||||
| RNB2-4L | 7.75 | 8.5 | 4.3 | 16.8 | ||||||
| RNB2-5S | 7.75 | 8.5 | 5.3 | 16.8 | ||||||
| RNB2-5L | 7.25 | 9.5 | 5.3 | 16.8 | ||||||
| RNB2-6 | 11 | 12 | 6.5 | 21.8 | ||||||
| RNB2-8 | 11 | 12 | 8.4 | 21.8 | ||||||
| RNB2-10 | 13.9 | 13.6 | 10.5 | 25.5 | ||||||
| RNB3.5-4 | 14-12 | 2.5-4 | 5 | 3 | 6 | 7.7 | 8 | 4.3 | 18 | 37 |
| RNB3.5-5S | 7.7 | 8 | 5.3 | 18 | ||||||
| RNB3.5-5L | 7.7 | 12 | 5.3 | 21.4 | ||||||
| RNB3.5-6 | 7.7 | 12 | 6.5 | 21.4 | ||||||
| RNB5.5-3.5 | 12-10 | 4-6 | 5.6 | 3.4 | 6.8 | 5.9 | 7.2 | 3.7 | 15.7 | 48 |
| RNB5.5-4S | 5.9 | 7.2 | 4.3 | 15.7 | ||||||
| RNB5.5-4L | 8.3 | 9.5 | 4.3 | 19.8 | ||||||
| RNB5.5-5 | 8.3 | 9.5 | 5.3 | 19.8 | ||||||
| RNB5.5-6 | 13 | 12 | 6.4 | 25.8 | ||||||
| RNB5.5-8 | 13.7 | 15 | 8.4 | 28 | ||||||
| RNB5.5-10 | 13.7 | 15 | 10.5 | 28 | ||||||
| RNB5.5-12 | 16 | 19.2 | 13 | 32.4 | ||||||
| RNB8-4 | 8 | 6-10 | 7.2 | 4.5 | 8.5 | 9.3 | 8.8 | 4.3 | 23.8 | 62 |
| RNB8-5S | 11.1 | 8.8 | 5.3 | 23.8 | ||||||
| RNB8-5M | 9.3 | 12 | 5.3 | 23.8 | ||||||
| RNB8-5L | 13.8 | 15 | 5.3 | 29.8 | ||||||
| RNB8-6S | 9.3 | 12 | 6.5 | 23.8 | ||||||
| RNB8-6L | 13.8 | 15 | 6.5 | 29.8 | ||||||
| RNB8-8 | 13.8 | 15 | 8.4 | 29.8 | ||||||
| RNB8-10 | 13.8 | 15 | 10.5 | 29.8 | ||||||
| RNB8-12 | 15 | 20 | 13 | 33.5 | ||||||
| RNB14-4 | 6 | 10-16 | 9 | 5.8 | 10.5 | 13.3 | 12 | 4.3 | 29.8 | 88 |
| RNB14-5 | 13.3 | 12 | 5.3 | 29.8 | ||||||
| RNB14-6S | 13.3 | 12 | 6.5 | 29.8 | ||||||
| RNB14-6L | 13.3 | 16 | 6.5 | 32.8 | ||||||
| RNB14-8 | 14.5 | 16 | 8.4 | 32.8 | ||||||
| RNB14-10 | 14.5 | 16 | 10.5 | 32.5 | ||||||
| RNB14-12 | 19.5 | 22 | 13 | 41 | ||||||
| RNB22-5S | 4 | 16-25 | 11.5 | 7.7 | 12 | 14.5 | 12.2 | 5.3 | 33.2 | 115 |
| RNB22-5 | 13.5 | 16.5 | 5.3 | 33.7 | ||||||
| RNB22-6S | 14.5 | 12.2 | 6.5 | 33.2 | ||||||
| RNB22-6L | 13.5 | 16.5 | 6.5 | 33.7 | ||||||
| RNB22-8 | 13.5 | 16.5 | 8.4 | 33.7 | ||||||
| RNB22-10 | 13.5 | 16.5 | 10.5 | 33.7 | ||||||
| RNB22-11 | 19.5 | 22 | 11.5 | 42.5 | ||||||
| RNB22-12 | 19.5 | 22 | 13 | 42.5 | ||||||
| RNB38-5 | 2 | 35-50 | 13.3 | 9.4 | 14 | 18.3 | 15.3 | 5.3 | 39 | 160 |
| RNB38-6 | 18.3 | 15.3 | 6.5 | 39 | ||||||
| RNB38-8S | 18.3 | 15.3 | 8.4 | 39 | ||||||
| RNB38-8L | 17.7 | 22 | 8.4 | 42.7 | ||||||
| RNB30-10S | 18.3 | 15.3 | 10.5 | 39 | ||||||
| RNB30-10L | 17.7 | 22 | 10.4 | 42.7 | ||||||
| RNB30-11 | 17.7 | 22 | 11.5 | 42.7 | ||||||
| RNB38-12 | 17.7 | 22 | 13 | 42.7 | ||||||
| RNB60-6 | 1/0 | 50-70 | 15.4 | 11.4 | 18 | 20.7 | 22 | 6.5 | 49.7 | 215 |
| RNB60-8 | 8.4 | |||||||||
| RNB60-10 | 10.5 | |||||||||
| RNB60-11 | 11.5 | |||||||||
| RNB60-12 | 13 | |||||||||
| RNB60-14 | 23.5 | 32 | 15 | 57.5 | ||||||
| RNB60-16 | 17 | |||||||||
| RNB60-18 | 19 | |||||||||
| RNB60-20 | 21 | |||||||||
| RNB60-22 | 23 | |||||||||
| RNB70-6 | 2/0 | 70-95 | 17.5 | 13 | 19 | 20 | 24 | 6.5 | 50.7 | 235 |
| RNB70-8 | 8.4 | |||||||||
| RNB70-10 | 10.5 | |||||||||
| RNB70-11 | 11.5 | |||||||||
| RNB70-12 | 13 | |||||||||
| RNB70-14 | 26.5 | 32 | 15 | 61 | ||||||
| RNB70-16 | 17 | |||||||||
| RNB70-18 | 19 | |||||||||
| RNB70-20 | 21 | |||||||||
| RNB70-22 | 23 | |||||||||
?
