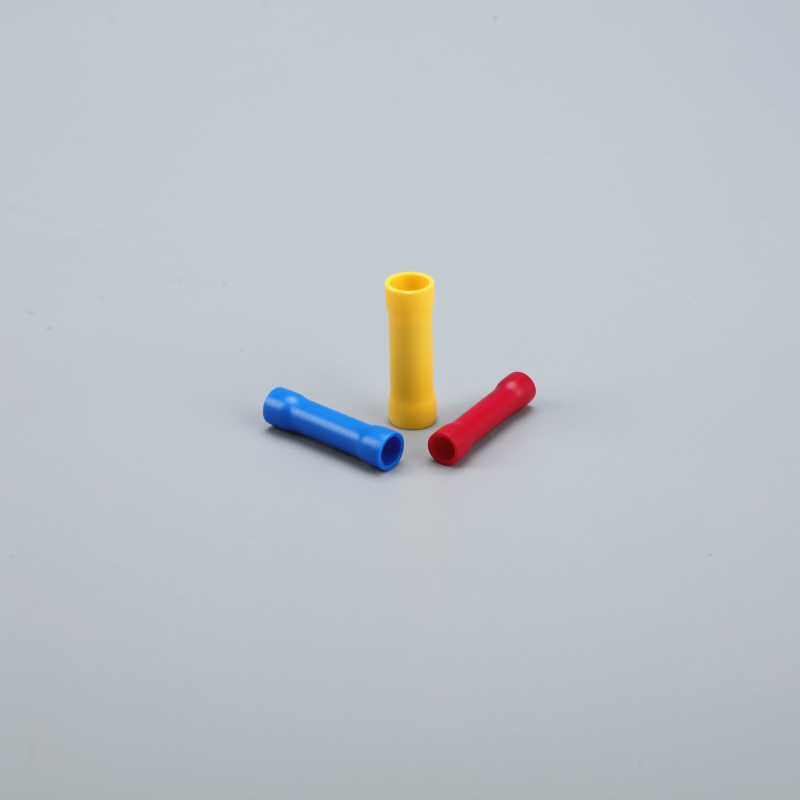

Material: Electrolytic Copper Tube with tin plated
Color: Red, Blue, Yellow
Package: 1000 Pcs /bag
Brand: WAHSURE
Type:?Butt Splice, Electrical Connectors,?Wire Terminals,?Crimp Terminals,?Butt Splice, Electrical Connectors,?Wire Terminals,?Crimp Terminals

Features:
*?Expanded wire entry designed to accommodate wires with a larger insulation thickness.
*?Designed to splice two solid or stranded wires together to repair or lengthen wires.
*?Brazed seam protects terminal barrel from splitting during the crimping process.
*?Internal wire stop assures proper length of insertion into terminal barrel.
*?Fully insulated design provides protection from electrical shorts.

ITEM NO. : BV1.25

Dwire Range	AWG/MCM	22-16
	mm2	0.25-1.65
L		23.7
E		15
Dφ		4
dφ		2.4
Color		Red
A		19

Other size

Specification Data

ITEM NO	Dwire Range		L	E	Dφ	dφ	Color	A
	AWG/MCM	mm2
BV1.25	22-16	0.25-1.65	23.7	15	4	2.4	Red	19
BV2	16-14	1.04-2.63	23.7	15	4.5		Blue	27
BV5.5	12-10	2.63-6.64	23.7	15	4		Yellow	48

?

?
